MX05 Series

Solar Flood Lights

  • Perpetual brightness,zero electricity charges
  • Original unique design,high quality and performance
  • Wide power range:50W to 500W,400LM to 4000LM
  • 5 years warranty,including batteries
  • Asymmetric lens for soft light beam,UV proof,no yellow
  • Plug-in microwave sensor, more flexible.Sensing distance 8-12m,farthest straight sensing up to 20m.
  • IP65 waterproof,anti-corrosion and anti-rust
  • IK06 impact,heavy-duty

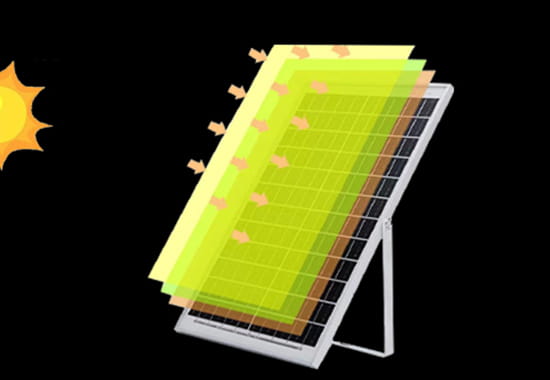

  • Grade A+ solar cell, conversation efficiency reaches 21.5%.
  • Only 5 hours for fully charging,20 hours continuous working,36 hours continuous working under sensing mode
  • Big capacity Lithium iron phosphate battery, safer and more charge+discharge cycles
  • ADC-12 aluminum, anti-corrosion, substantial and durable, good heat dissipation
  • Stainless steel screws
  • TOP brand LEDs and electronic components, reliable quality
  • Real lumen, professional factory in Ningbo, China


The MX05 series is a solar floodlight with novel design and reliable quality. It uses ADC-12 die-cast aluminum as the shell, which has excellent heat dissipation performance, as well as the advantages of anti-UV, anti-corrosion, and salt spray. It is heavy-duty and durable and can be used in a variety of outdoor places. High-quality solar panels can achieve photoelectric conversion efficiency of up to 21%, and large-capacity batteries can keep the lamps powered all year round, even on continuous rainy days. In addition, this solar floodlight can also be equipped with a plug-in microwave module to further save energy. Embrace new energy and make the earth cleaner, Ningbo Mingxing Lighting is willing to work with you to act together.

Technical Parameters

 Model No. Floodlight Battery Solar Panel Charging Time
(STC )
Disharging Time
Driver Type Dimension
Type Capacity Type Capacity Efficiency MW non-MW
MX05-50W SMD2835 400 3000K
≥80 90° IP65  DOB 161x225x51 H05RN-F
lithium iron phosphate
3.2V 6AH
monocrystalline silicon 5V 5W 21% 5hrs 36hrs 12+8hrs
5V 7W 4hrs
polycrystalline silicon 5V 5W 18% 5hrs
5V 7W 4hrs
MX05-100W SMD2835 800 3000K
≥80 90° IP65 DOB 188x258x51 H05RN-F
lithium iron phosphate
3.2V 12AH
monocrystalline silicon 5V 10W 21% 5hrs 36hrs 12+8hrs
5V 15W 4hrs
polycrystalline silicon 5V 10W 18% 5hrs
5V 15W 4hrs
MX05-200W SMD2835 1600 3000K
≥80 90° IP65  DOB 220x294x51 H05RN-F
lithium iron phosphate
3.2V 24AH
monocrystalline silicon 5V 20W 21% 5hrs 36hrs 12+8hrs
5V 25W 4hrs
polycrystalline silicon 5V 20W 18% 5hrs
5V 25W 4hrs
MX05-300W SMD2835 2400 3000K
≥80 90° IP65 DOB 260x345x51 H05RN-F
lithium iron phosphate
3.2V 36AH
monocrystalline silicon 5V 35W 21% 5hrs 36hrs 12+8hrs
MX05-500W SMD2835 4000 3000K
≥80 90° IP65  DOB 299x395x53 H05RN-F
lithium iron phosphate
9.6V 24AH
monocrystalline silicon 18V 50W 21% 5hrs 36hrs 12+8hrs
Controller Function for microwave models 1. Set sleep mode/stand-by mode/daytime working mode.
2. Set timer mode: 5hrs/8hrs/12hrs.
3. Set full brightness mode/half brightness mode.
4. Set brightening mode/dimmable mode.
5. Set microwave mode on/off.
Plug-in microwave Module 1. Plug-in microwave module in PCB. 3 choices during placking order. Choice 1, with integrated microwave sensor. Choice 2, with microwave module in PCB, but not with microwave sensor. Dealers can plug-in microwave sensor during sales when necessary. Choice 3, without microwave module in PCB. So, without microwave function.
2. Microwave wensing distance: 25° ambient temp, farthest straight sensing up to 20m. 4m fixing height,  sensing 7-8m left and right, 12m in face direction.
3. In microwave mode, when working, full brightness, when standy-by, 20% brightness to save energy.

Product Details

  • Mingxing's original patented design with lens, unique, fashionable and heavy-duty.

  • 53mm thickness for 500W. Quality that you can see.

  • Fantastic arc at back, better heat dissipation, no water accumulation.

  • Asymmetric lens for soft light beam, UV proof, no yellow.

  • Internal detachable MW sensor module(optional), 2 in 1, save 50% stock.

  • ADC-12 aluminum housing, fully weatherproof, UV proof and salt proof, heavy-duty.

  • Grade A+ solar cell, conversation efficiency reaches 21.5%. Chargeable even rainy days.

  • Perpetual brightness but ZERO electricity charges.

  • Brand new full capacity battery, safer and durable.Top brand chip, 20+ safety protection, big capacity, 2000 times cycles, 5 years warranty.


We supply flood light, solar light, and street lamp with patent design and reliable quality. The factory was founded in 2007 with over 10,000 square meters. Our team is consisted of over 200 staffs. The annual output exceeds 2 million pcs. Deeply involved in the lighting field for many years, we well understand the market demand and have superior R&D and innovation ability, and we can design customized products according to partner’s requirements.
