10 Series

LED Flood Light

Features
  • Streamline design, more beautiful appearance, no accumulation.
  • TOP brand LEDs, 4mm fully tempered glass, reliable driver,
  • ADC12 die-cast aluminum body, Integrated design, excellent heat performance, more durable.
  • IK06 impact.
  • IP65 waterproof for outdoor lighting.
  • Breather design, no water accumulation
  • Professional surface painting, stainless steel screw, giving excellent performance in anti-corrosion and anti-rust. Widely used in different environments.
  • 180° rotatable bracket for flexible beam angle.
  • sensor/RGB optional,12V/24V and 36V optional.
  • SGS CE RoHS certificated.
  • MOQ:500pcs
  • Payment:T/T,L/C
  • Delivery time: 25-35 days
  • FOB port:Ningbo,China
GET A QUOTE

PRODUCT INTRODUCTION

Our 10 series LED floodlights is classic fantastic design, close to a square, with an excellent aspect ratio. It adopts ADC-12 die-cast aluminum shell with ribbed heat sink back, which can ensure the heat dissipation performance and lifespan of the lamp. By using LM-80 tested international first-class brand LEDs ,with the characteristics of high brightness, high CRI (color rendering index), low SDCM, and no blue light hazard, we can ensure that the light decay of LEDs and the LED flood lights meet the highest international quality standard. As for surge protection, our lamps are 2KV-10KV optional.

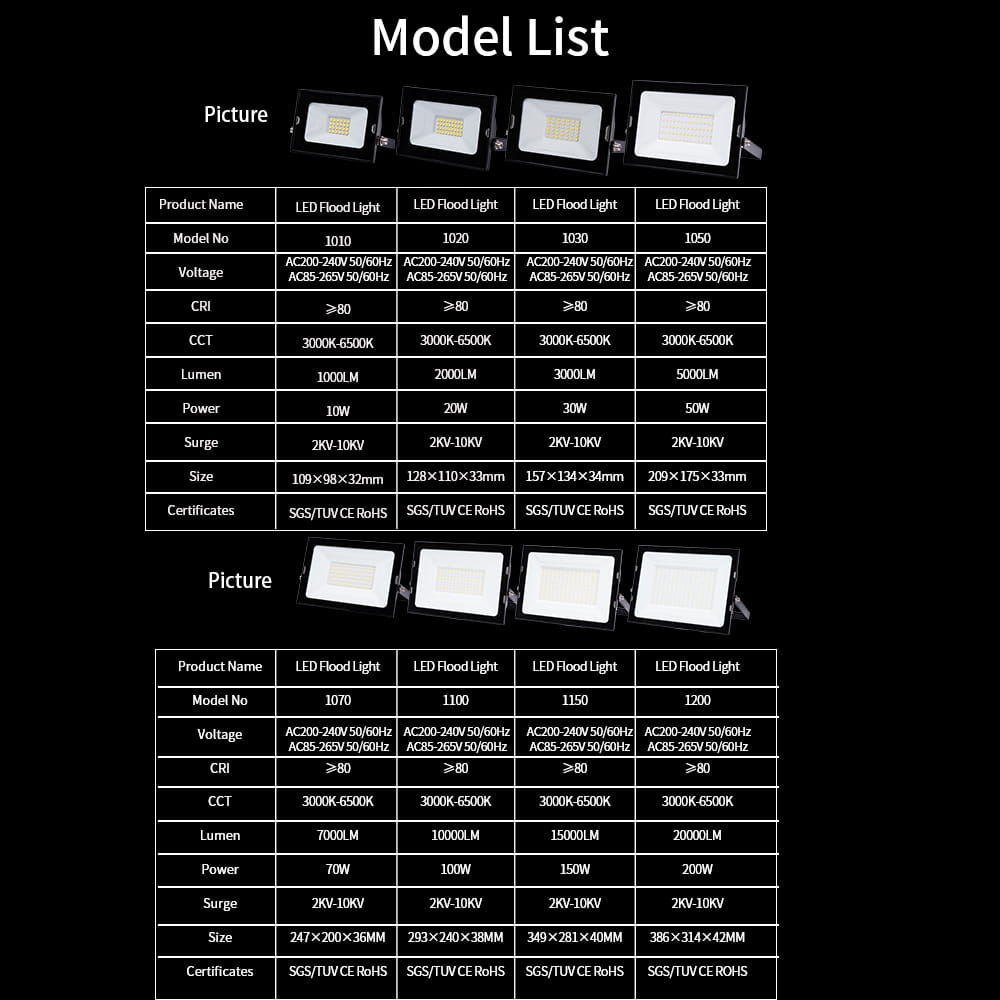

Technical Parameters

Model No. Real Power LM Voltage LED
Chip		 CCT PF CRI Beam
Angle		 IP
Grade		 Surge
Level		 Lifetime Prewired
Cable		 Product size
(mm)		 Carton size
(cm)		  pcs/ctn Guarantee
(years)		 Certificates
1010 10W 1000 AC220-240V 50/60Hz
AC85-265V 50/60Hz		 SMD2835 3000K-6500K ≥0.9 ≥80 120° 65 2KV-10KV 30000Hrs H05RN-F 3*1.0mm² 15CM 92×67×27 47.5×27×27.5 60 3 years SGS CE
1020 20W 2000 AC220-240V 50/60Hz
AC85-265V 50/60Hz		 SMD2835 3000K-6500K ≥0.9 ≥80 120° 65 2KV-10KV 30000Hrs H05RN-F 3*1.0mm² 15CM 112×77×28 52.5×28.5×21 40 3 years SGS CE
1030 30W 3000 AC220-240V 50/60Hz
AC85-265V 50/60Hz		 SMD2835 3000K-6500K ≥0.9 ≥80 120° 65 2KV-10KV 30000Hrs H05RN-F 3*1.0mm² 15CM 137×97×28 52.5×34.5×25 40 3 years SGS CE
1050 50W 5000 AC220-240V 50/60Hz
AC85-265V 50/60Hz		 SMD2835 3000K-6500K ≥0.9 ≥80 120° 65 2KV-10KV 30000Hrs H05RN-F 3*1.0mm² 15CM 189×134×28 44.5×27×32 20 3 years SGS CE
1070 70W 7000 AC220-240V 50/60Hz
AC85-265V 50/60Hz		 SMD2835 3000K-6500K ≥0.9 ≥80 120° 65 2KV-10KV 30000Hrs H05RN-F 3*1.0mm² 15CM 225×155×29 42×27×36 16 3 years SGS CE
1100 100W 10000 AC220-240V 50/60Hz
AC85-265V 50/60Hz		 SMD2835 3000K-6500K ≥0.9 ≥80 120° 65 2KV-10KV 30000Hrs H05RN-F 3*1.0mm² 15CM 271×191×37 46.5×32×22.5 8 3 years SGS CE
1150 150W 15000 AC220-240V 50/60Hz
AC85-265V 50/60Hz		 SMD2835 3000K-6500K ≥0.9 ≥80 120° 65 2KV-10KV 30000Hrs H05RN-F 3*1.0mm² 15CM 317×227×33 38×37.5×27 6 3 years SGS CE
1200 200W 20000 AC220-240V 50/60Hz
AC85-265V 50/60Hz		 SMD2835 3000K-6500K ≥0.9 ≥80 120° 65 2KV-10KV 30000Hrs H05RN-F 3*1.0mm² 15CM 352×257×35 41×25.5×30 4 3 years SGS CE

Product Details

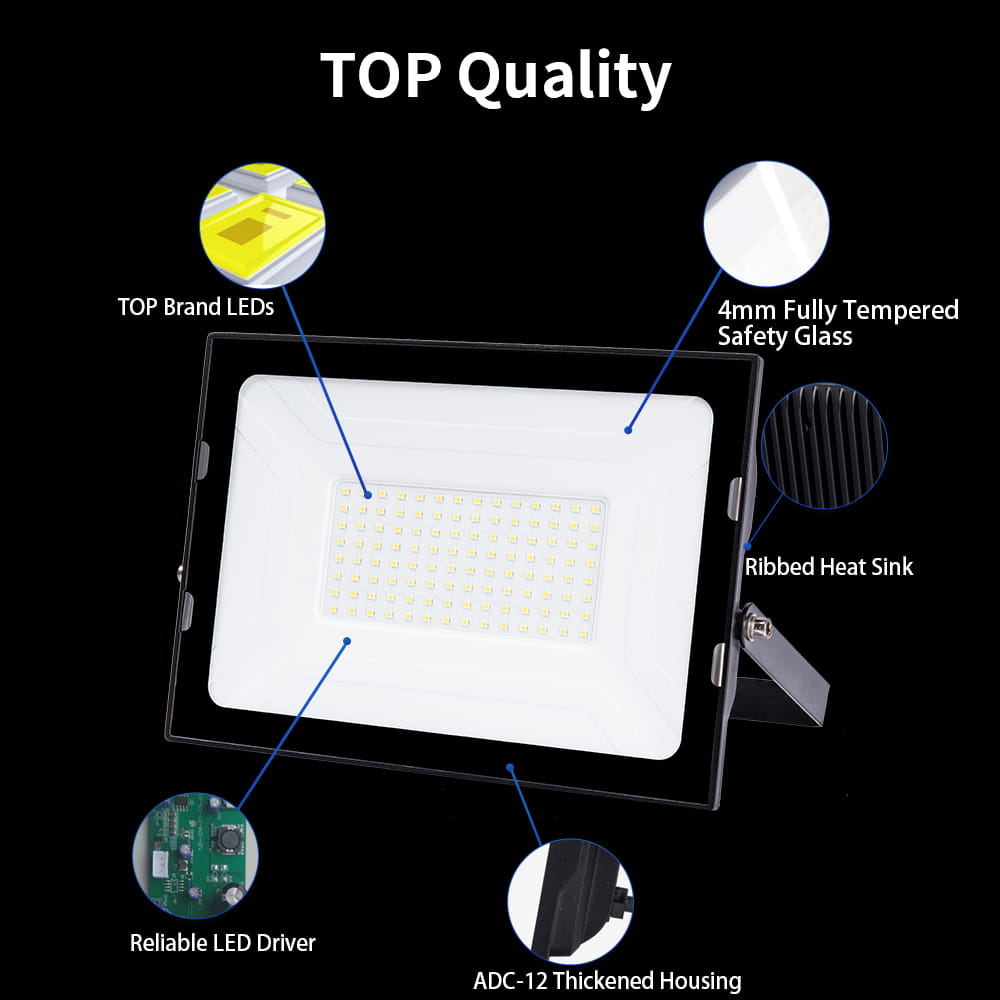

  • Equipped with CREE/SAMSUNG/SAN AN LM-80 SMD LED, our LED flood lights can reach 85-160LM/W with CRI≥80 or 90, SDCM≤6 or 3, L80:30K or 50K hours.

  • With reliable drivers, our LED flood lights meet international quality standards, such as CE UKCA GS ENEC CB SASO.

  • Quality is always our top priority. With 2KV-10KV surge protection, our LED flood lights are more secure.

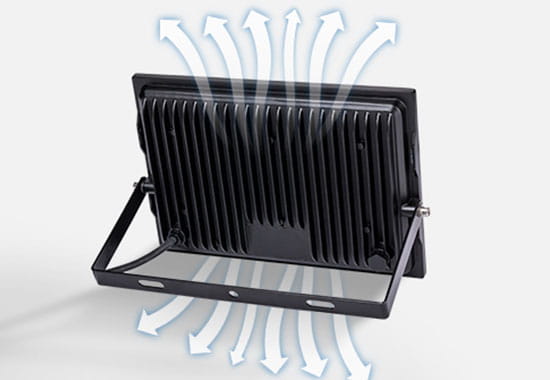

  • ADC-12 aluminum housing with ribbed back ensures a good heat sink and longer lifespan.

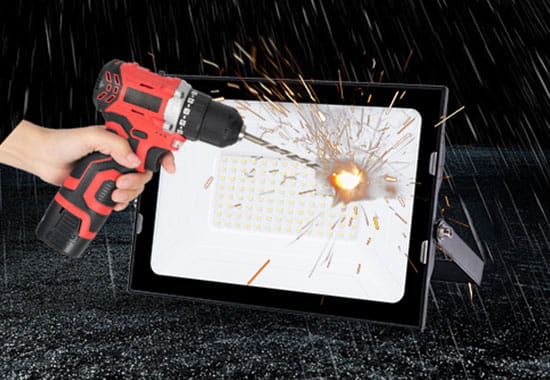

  • 4mm thickness fully tempered glass, IK06, more secure than 3mm semi-tempered from other manufacturers.

  • 180° rotatable bracket for easy installation and beam adjustment.

  • Breather design can prevent water accumulation caused by large temperature differences inside and outside of the lamp.

  • 100% aging test for each order.

  • No matter it is -40℃ or +65℃, our LED flood lights always work well.

Certificate

We supply flood light, solar light, and street lamp with patent design and reliable quality. The factory was founded in 2007 with over 10,000 square meters. Our team is consisted of over 200 staffs. The annual output exceeds 2 million pcs. Deeply involved in the lighting field for many years, we well understand the market demand and have superior R&D and innovation ability, and we can design customized products according to partner’s requirements.

  • 2007

    Founded in

  • 10,000+

    Company area

  • 200+

    Staff

  • 2,000,000+

    Annual output

Frequently Asked Questions

  • How Can I Get a Quote For The Lights?

    Get in touch with our customer service team to get a quote. They are available 24/7. Just be ready with your specifications like size, color temperature, wattages, etc. Give us your BOQ, and we’ll guide you through the rest of the process.

  • What is Your MOQ For The Order?

    Our MOQ is 500pcs for each item.

  • Can I Get a Sample Before Place The Order?

    Yes, we will provide you with a sample that you can physically evaluate. This will take 3 to 7 business days to complete. Custom orders may take longer.

  • What Is The Delivery Time of My Order?

    Our usual delivery time for LED flood lights is 25 to 35 days. The shipping period isn’t included, so consider that when setting your deadline expectations.

  • Can You Make Customized LED Flood Lights?

    Yes, we can customize LED Flood Lights for you. We need you to give us specific details like your design preference, power input, beam angles, wattage, etc. If you need further direction, our customer service can help you throughout the process.

  • What Is Your Warranty For Your LED Flood Lights?

    Quality is vital in everything that we do. This is why we are confident enough to provide our LED Flood Lights with a 3- or 5-year warranty. You can ensure that we only use high-quality materials and that every product is 100% tested before delivering to your specified location.
