Home / Products / LED Light / LED Flood Lights / MX02 Series

MX02 Series

LED Flood Lights

Features
  • Pro series LED flood lights,perfect for projects
  • Wide power range:10W-200W,up to 160LM/W
  • 50K hrs lifespan,5 years warranty
  • Independent driver(isolated or non-isolated),DOB is also optional
  • Real watt,real lumen,professional factory in Ningbo
  • ADC-12 die-cast aluminum body,ribbed back,perfect heat dissipation,maintenance free
  • Streamline design, more beautiful appearance
  • With valve respirator from 50W to 500W
  • 4mm fully tempered safety glass
  • TOP brand LEDs and electronic components,reliable quality
  • Patent design:extra metal clips to fasten glass,more secure
  • Stainless steel screws
  • IP65 waterproof,anti-corrosion and anti-rust
  • IK06 impact,heavy-duty
  • 180° rotatable bracket for flexible beam angle
  • sensor/RGB optional,12V/24V and 36V optional
  • SGS CE RoHS certificated
  • MOQ:500pcs
  • Payment:T/T,L/C
  • Delivery time: 25-35 days
  • FOB port:Ningbo,China
GET A QUOTE

PRODUCT INTRODUCTION

Our 02 series LED flood light is a high-quality lamp. It adopts an independent isolated or non-isolated driver. It can achieve a maximum of 500W, a maximum luminous efficiency of 160LM/W, and a long 5-year warranty. Its shell is made of ADC-12 aluminum die-casting, 4mm thick tempered glass, and the bracket with scale can be adjusted 180°. As a professional LED flood light manufacturer with 16 years of experience, MINGXING LIGHTING can provide you with the most professional and high-quality lamps.

Technical Parameters

Model No.  MX02Q-30W MX02Q-50W MX02Q-100W MX02Q-150W MX02Q-200W MX02Q-300W MX02Q-500W
Power (W) 30W 50W 100W 150W 200W 300W 500W
Efficiency (lm/W) 130lm/W,140lm/W,160lm/W 130lm/W,140lm/W,160lm/W 130lm/W,140lm/W,160lm/W 130lm/W,140lm/W,160lm/W 130lm/W,140lm/W,160lm/W 130lm/W,140lm/W,160lm/W 130lm/W,140lm/W,160lm/W
Luminous Flux (lm) 3900lm/4200lm/4800lm 6500lm/7000lm/8000lm 13000lm/14000lm/16000lm 19500lm/21000lm/24000lm 26000lm/28000lm/32000lm 39000lm/42000lm/48000lm 56000lm/70000lm
Input Voltage (V)  AC220-240V 50/60Hz
AC85-265V 50/60Hz		 AC220-240V 50/60Hz
AC85-265V 50/60Hz		 AC220-240V 50/60Hz
AC85-265V 50/60Hz		 AC220-240V 50/60Hz
AC85-265V 50/60Hz		 AC220-240V 50/60Hz
AC85-265V 50/60Hz		 AC220-240V 50/60Hz
AC85-265V 50/60Hz		 AC220-240V 50/60Hz
AC85-265V 50/60Hz
Driver Type Non-isolated Driver Non-isolated Driver Non-isolated Driver Non-isolated Driver Non-isolated Driver Non-isolated Driver Non-isolated Driver
LED Type SMD2835 SMD2835 SMD2835 SMD2835 SMD2835 SMD2835 SMD2835
LED Quantity (pcs) 50/50/96 96/96/144 192/192/288 288/288/432 384/384/576 567/576//864 672/672
LED Chip Brand SAN AN SAN AN SAN AN SAN AN SAN AN SAN AN SAN AN
LED Lifespan 50000 Hrs 50000 Hrs 50000 Hrs 50000 Hrs 50000 Hrs 50000 Hrs 50000 Hrs
CCT 3000K/4000K/6500K 3000K/4000K/6500K 3000K/4000K/6500K 3000K/4000K/6500K 3000K/4000K/6500K 3000K/4000K/6500K 3000K/4000K/6500K
CRI (Ra) ≥80 ≥80 ≥80 ≥80 ≥80 ≥80 ≥80
PF ≥0.9 ≥0.9 ≥0.9 ≥0.9 ≥0.9 ≥0.9 ≥0.9
Beam Angle 120° 120° 120° 120° 120° 120° 120°
IP Grade IP65 IP65 IP65 IP65 IP65 IP65 IP65
IK Grade IK06 IK06 IK06 IK06 IK06 IK06 IK06
Surge Grade 2KV-10KV 2KV-10KV 2KV-10KV 2KV-10KV 2KV-10KV 2KV-10KV 2KV-10KV
Work Environment -40°C-65°C -40°C-65°C -40°C-65°C -40°C-65°C -40°C-65°C -40°C-65°C -40°C-65°C
Main Material AL AL AL AL AL AL AL
Color Choice grey/black grey/black grey/black grey/black grey/black grey/black grey/black
Warranty (Years) 5 years 5 years 5 years 5 years 5 years 5 years 5 years
Prewired Cable H05RN-F 3*1.0mm² 30cm H05RN-F 3*1.0mm² 30cm H05RN-F 3*1.0mm² 30cm H05RN-F 3*1.0mm² 30cm H05RN-F 3*1.0mm² 30cm H05RN-F 3*1.0mm² 30cm H05RN-F 3*1.0mm² 30cm
Product Size (mm) 124×162×31 165×218×36 205×306×40 251×358×42 297×414×46 352×480×48 415×566×58

Product Details

  • Equipped with CREE/SAMSUNG/SAN AN LM-80 SMD LED, our LED flood lights can reach 85-160LM/W with CRI≥80 or 90, SDCM≤6 or 3, L80:50K hours.

  • With reliable drivers, our LED flood lights meet international quality standards, such as CE UKCA GS ENEC CB SASO.

  • Quality is always our top priority. With 2KV-10KV surge protection, our LED flood lights are more secure.

  • ADC-12 aluminum housing with ribbed back ensures a good heat sink and longer lifespan.

  • 4mm thickness fully tempered glass, IK06, more secure than 3mm semi-tempered from other manufacturers.

  • 180° rotatable bracket for easy installation and beam adjustment.

  • Breather design can prevent water accumulation caused by large temperature differences inside and outside of the lamp.

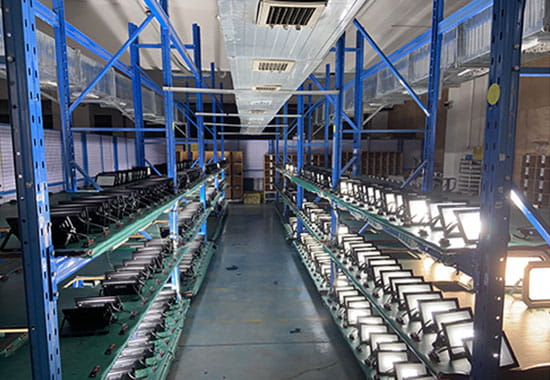

  • 100% aging test for each order.

  • No matter it is -40℃ or +65℃,our LED flood lights always work well.

Certificate

We supply flood light, solar light, and street lamp with patent design and reliable quality. The factory was founded in 2007 with over 10,000 square meters. Our team is consisted of over 200 staffs. The annual output exceeds 2 million pcs. Deeply involved in the lighting field for many years, we well understand the market demand and have superior R&D and innovation ability, and we can design customized products according to partner’s requirements.

  • 2007

    Founded in

  • 10,000+

    Company area

  • 200+

    Staff

  • 2,000,000+

    Annual output

Frequently Asked Questions

  • How Can I Get a Quote For The Lights?

    Get in touch with our customer service team to get a quote. They are available 24/7. Just be ready with your specifications like size, color temperature, wattages, etc. Give us your BOQ, and we’ll guide you through the rest of the process.

  • What is Your MOQ For The Order?

    Our MOQ is 500pcs for each item.

  • Can I Get a Sample Before Place The Order?

    Yes, we will provide you with a sample that you can physically evaluate. This will take 3 to 7 business days to complete. Custom orders may take longer.

  • What Is The Delivery Time of My Order?

    Our usual delivery time for LED flood lights is 25 to 35 days. The shipping period isn’t included, so consider that when setting your deadline expectations.

  • Can You Make Customized LED Flood Lights?

    Yes, we can customize LED Flood Lights for you. We need you to give us specific details like your design preference, power input, beam angles, wattage, etc. If you need further direction, our customer service can help you throughout the process.

  • What Is Your Warranty For Your LED Flood Lights?

    Quality is vital in everything that we do. This is why we are confident enough to provide our LED Flood Lights with a 3- or 5-year warranty. You can ensure that we only use high-quality materials and that every product is 100% tested before delivering to your specified location.
