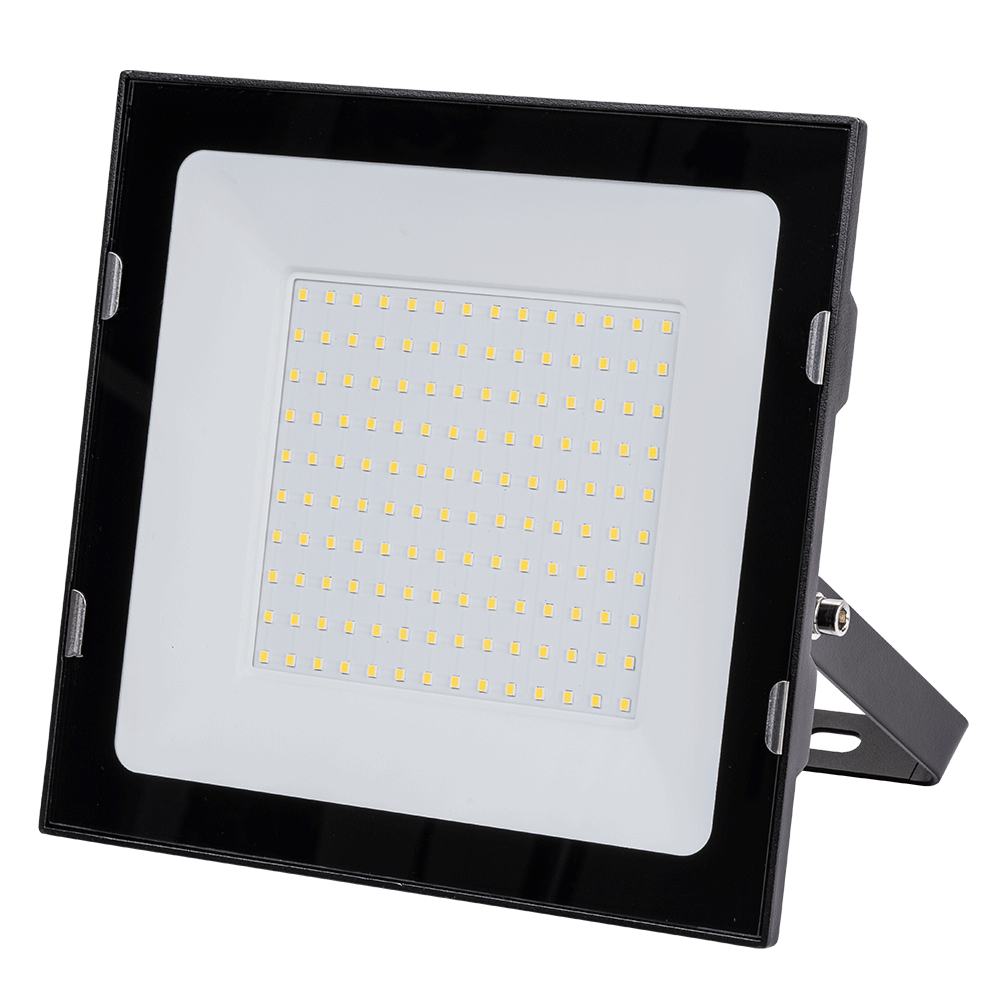

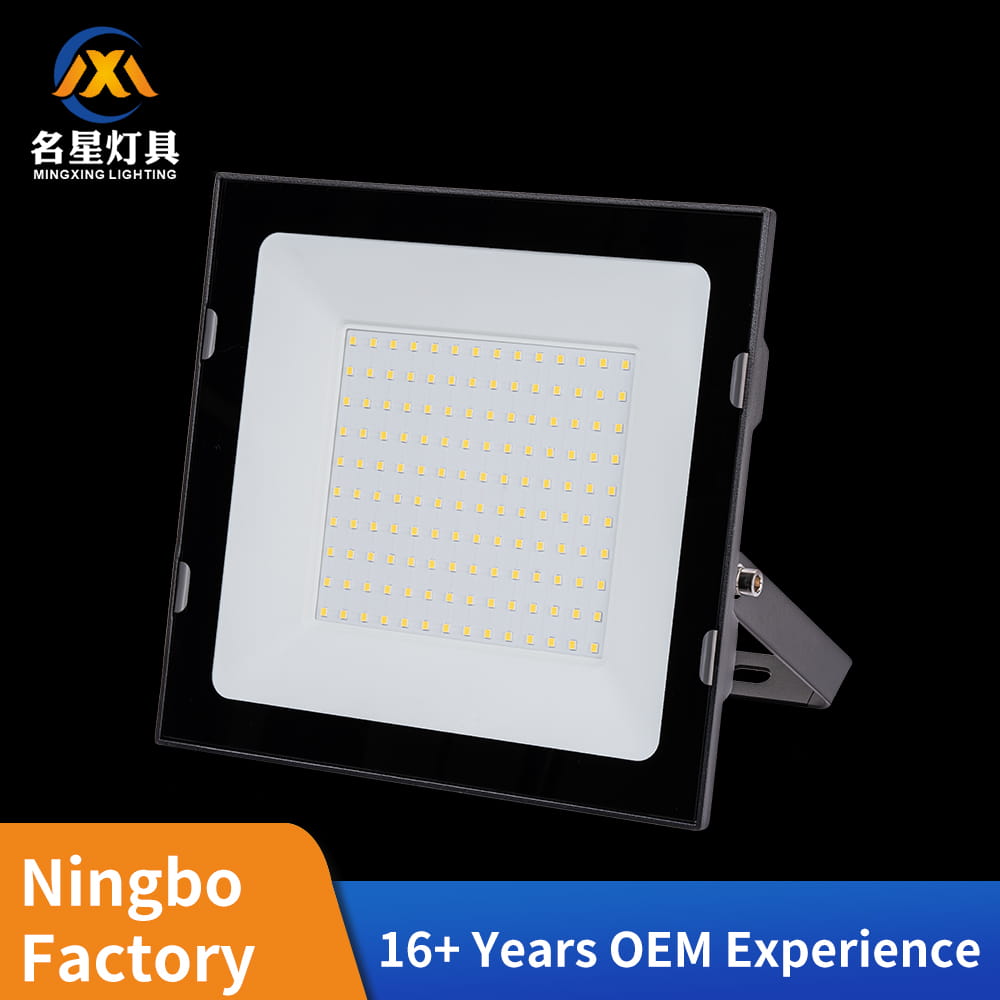

MX04 Series

LED Flood Lights

Features
  • New design,good performance and price
  • Real watt,real lumen,professional factory in Ningbo
  • ADC-12 die-cast aluminum body,ribbed back,perfect heat  dissipation,maintenance free
  • Streamline design, more beautiful appearance
  • With valve respirator from 70W to 200W
  • 4mm fully tempered safety glass

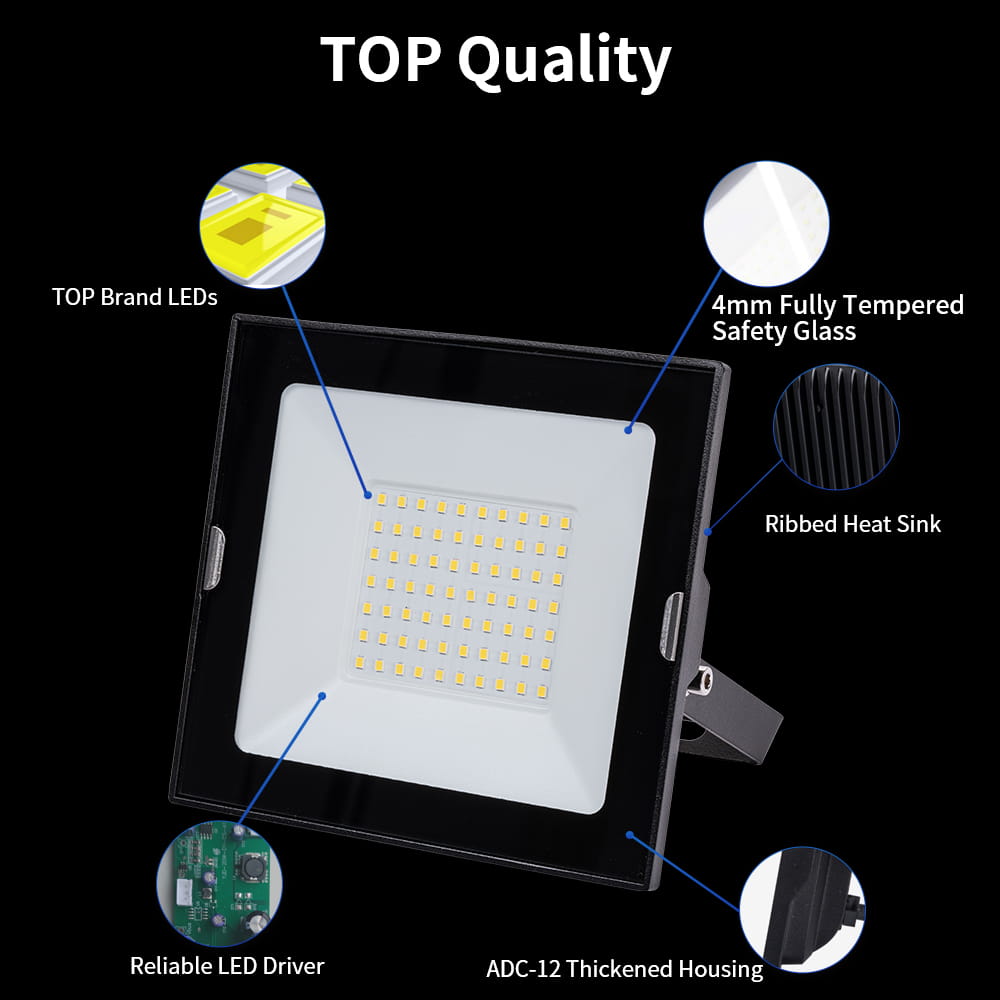

  • TOP brand LEDs and electronic components,reliable quality
  • Patent design:extra metal clips to fasten glass,more secure
  • Stainless steel screws
  • Up to 200W,85-140LM/W

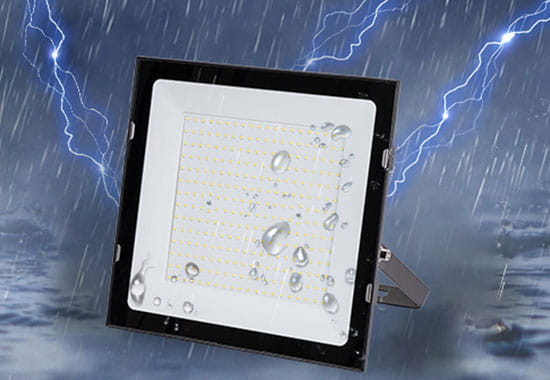

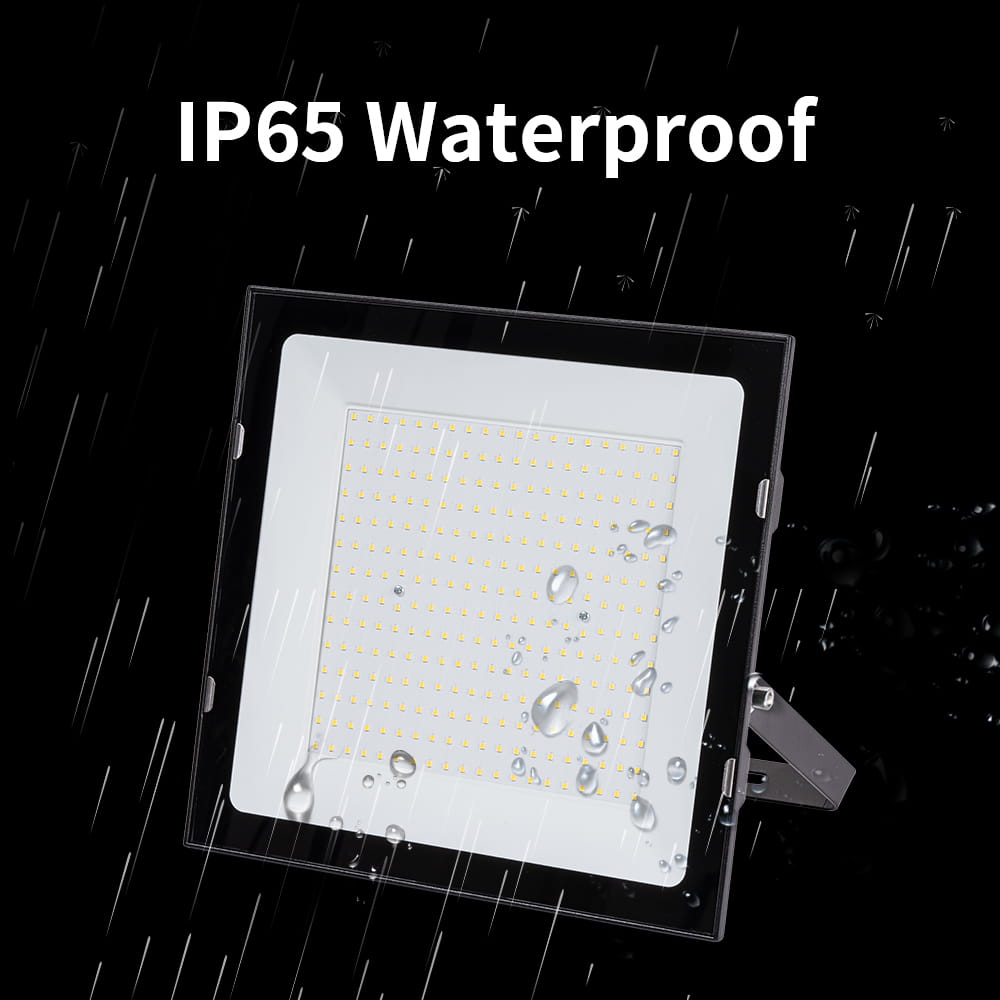

  • IP65 waterproof,anti-corrosion and anti-rust
  • IK06 impact,heavy-duty
  • 180° rotatable bracket for flexible beam angle

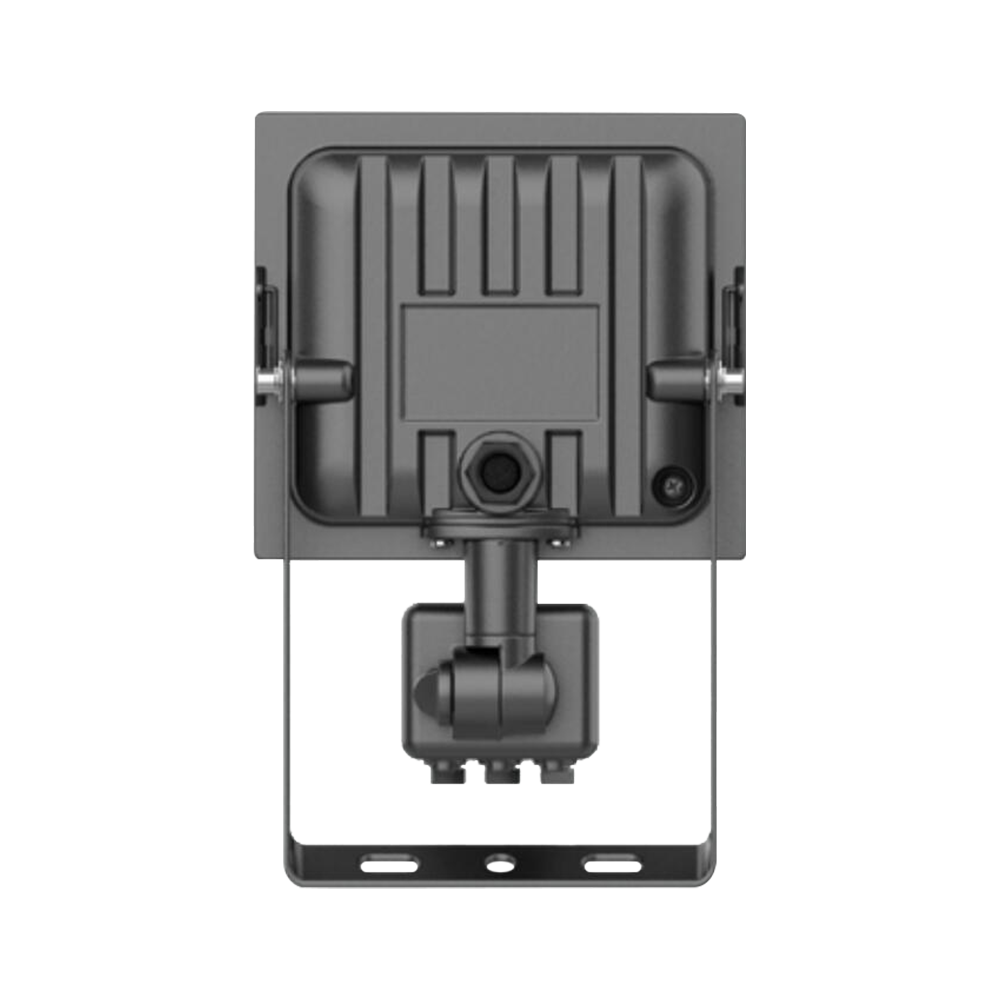

  • sensor/RGB optional,12V/24V and 36V optional
  • SGS CE RoHS certificated
  • MOQ:500pcs
  • Payment:T/T,L/C
  • Delivery time: 25-35 days
  • FOB port:Ningbo,China
GET A QUOTE

PRODUCT INTRODUCTION

As the newly designed MX04 series LED flood light, it has the advantages of high cost performance and reliable quality. The power can be from 10W to 200W, the light efficiency can be 70LMW/-120LM/W, and the super long 3-year warranty. Its shell is made of ADC-12 aluminum die-casting, 4mm thick tempered glass, and the bracket can be adjusted by 180°. The close to square appearance and the quality that fully meet European standards make it very popular, with an annual sales volume of one million. As a professional LED flood light manufacturer with 16 years of experience, MINGXING LIGHTING can provide you with the most professional and high-quality lamps.

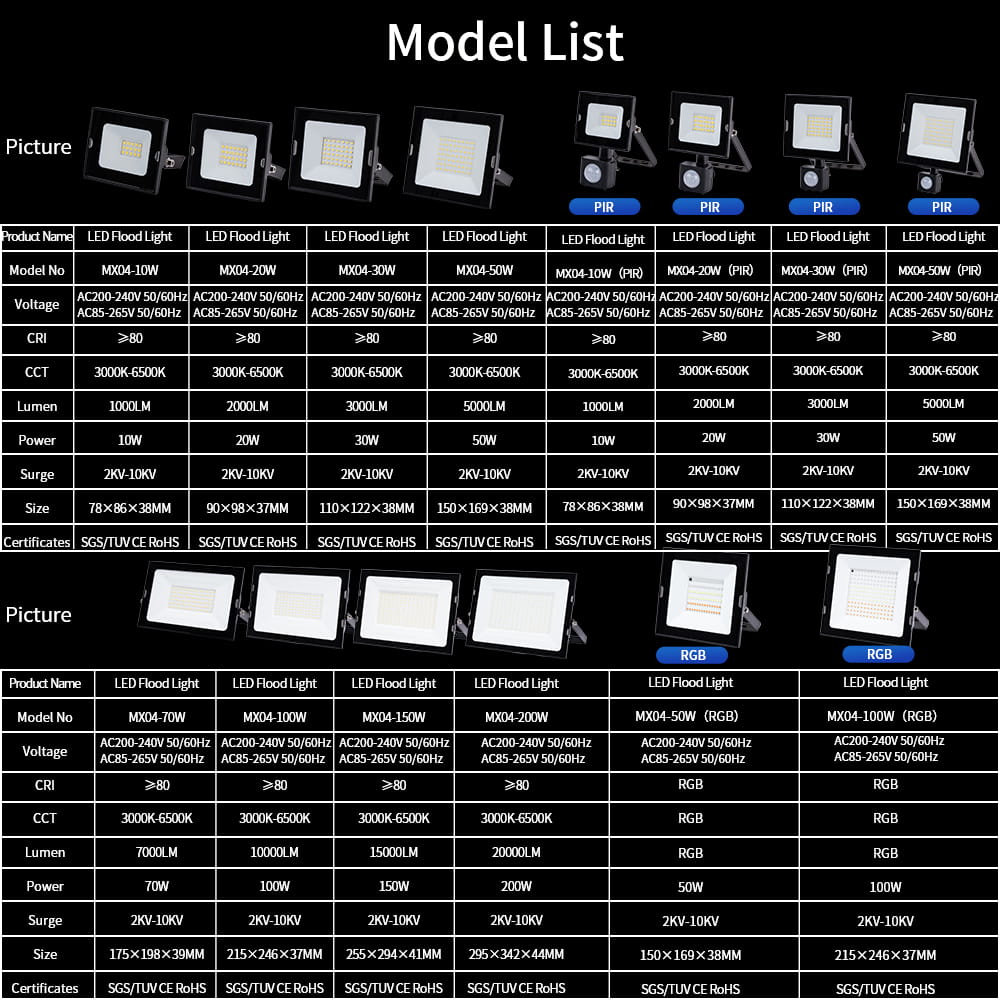

Technical Parameters

Ordering
Code		 Wattage Real Voltage PF LED LM Color Temperature CRI Beam Angle Lifetime Surge Dimension Prewired cable Guarantee pcs/ctn
W W V K ° h mm years
MX04-10W 10 10 AC220-240V 50/60Hz
AC85-265V 50/60Hz		 0.9  SMD2835 1000 3000K-6500K >80 120° 30000 2KV-10KV 78*68*32 H05RN-F 3*1.0mm² 15CM 2-3 60
MX04-20W 20  20 AC220-240V 50/60Hz
AC85-265V 50/60Hz		 0.9  SMD2835 2000 3000K-6500K >80 120° 30000 2KV-10KV 90*80*33 H05RN-F 3*1.0mm² 15CM 2-3 40
MX04-30W 30  30 AC220-240V 50/60Hz
AC85-265V 50/60Hz		 0.9  SMD2835 3000 3000K-6500K >80 120° 30000 2KV-10KV 110*100*33 H05RN-F 3*1.0mm² 15CM 2-3 40
MX04-50W 50  50 AC220-240V 50/60Hz
AC85-265V 50/60Hz		 0.9  SMD2835 5000 3000K-6500K >80 120° 30000 2KV-10KV 150*140*33 H05RN-F 3*1.0mm² 15CM 2-3 20
MX04-70W 70  70 AC220-240V 50/60Hz
AC85-265V 50/60Hz		 0.9  SMD2835 7000 3000K-6500K >80 120° 30000 2KV-10KV 175*165*35 H05RN-F 3*1.0mm² 15CM 2-3 16
MX04-100W 100  100 AC220-240V 50/60Hz
AC85-265V 50/60Hz		 0.9  SMD2835 10000 3000K-6500K >80 120° 30000 2KV-10KV 215*205*35 H05RN-F 3*1.0mm² 15CM 2-3 8
MX04-150W 150  150 AC220-240V 50/60Hz
AC85-265V 50/60Hz		 0.9  SMD2835 15000 3000K-6500K >80 120° 30000 2KV-10KV 255*245*36 H05RN-F 3*1.0mm² 15CM 2-3 6
MX04-200W 200  200 AC220-240V 50/60Hz
AC85-265V 50/60Hz		 0.9  SMD2835 20000 3000K-6500K >80 120° 30000 2KV-10KV 295*285*36 H05RN-F 3*1.0mm² 15CM 2-3 4

Product Details

  • Equipped with CREE/SAMSUNG/SAN AN LM-80 SMD LED, our LED flood lights can reach 85-160LM/W with CRI≥80 or 90, SDCM≤6 or 3, L80:30K or 50K hours.

  • With reliable drivers, our LED flood lights meet international quality standards, such as CE UKCA GS ENEC CB SASO.

  • Quality is always our top priority. With 2KV-10KV surge protection, our LED flood lights are more secure.

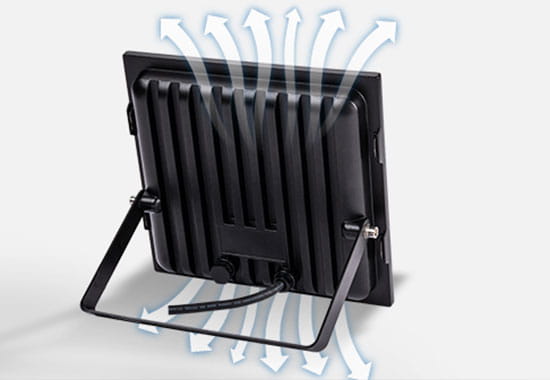

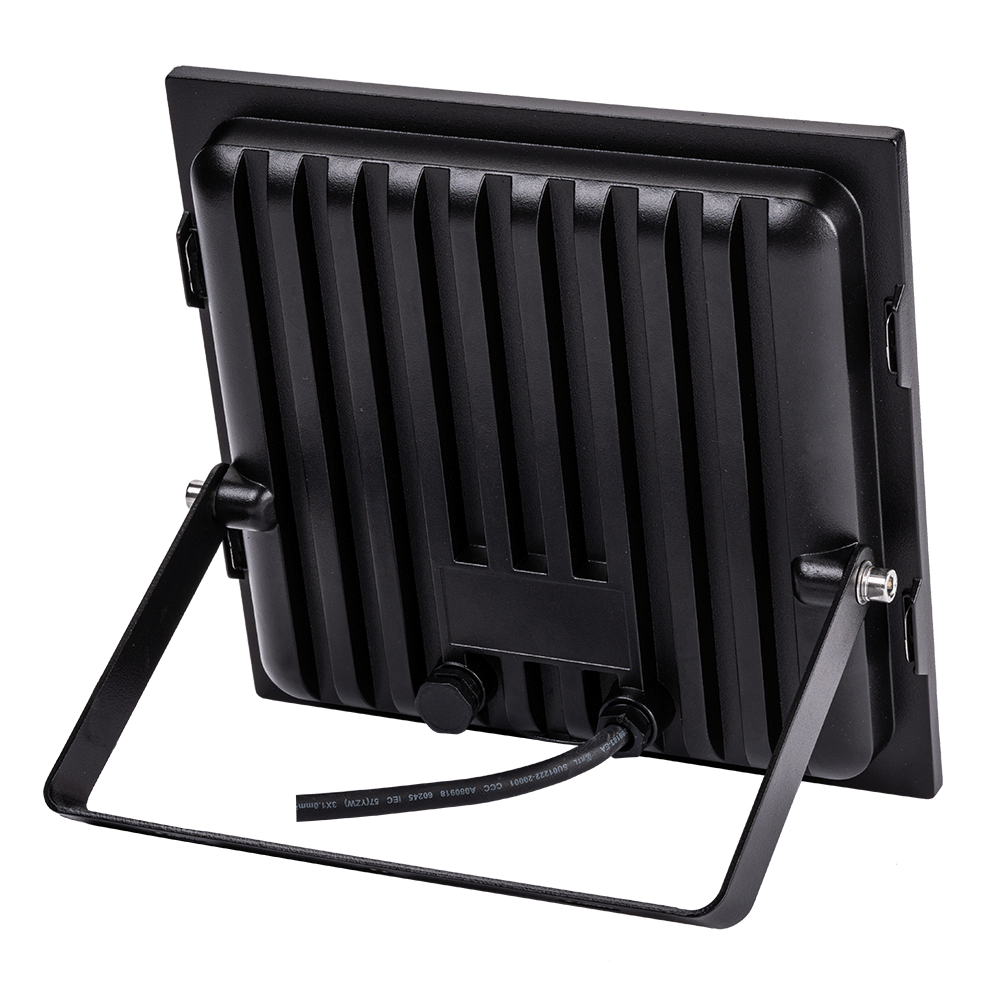

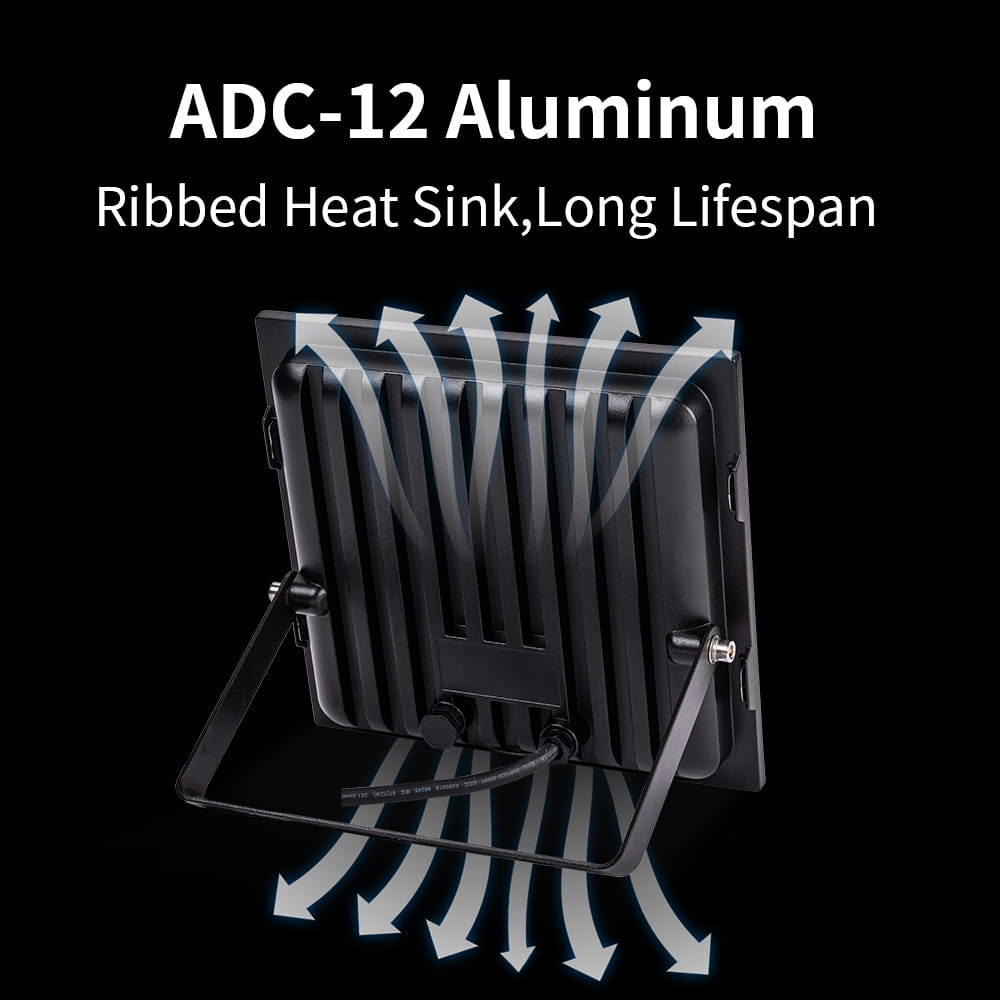

  • ADC-12 aluminum housing with ribbed back ensures a good heat sink and longer lifespan.

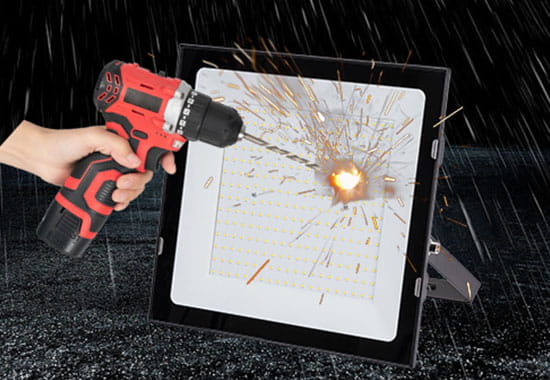

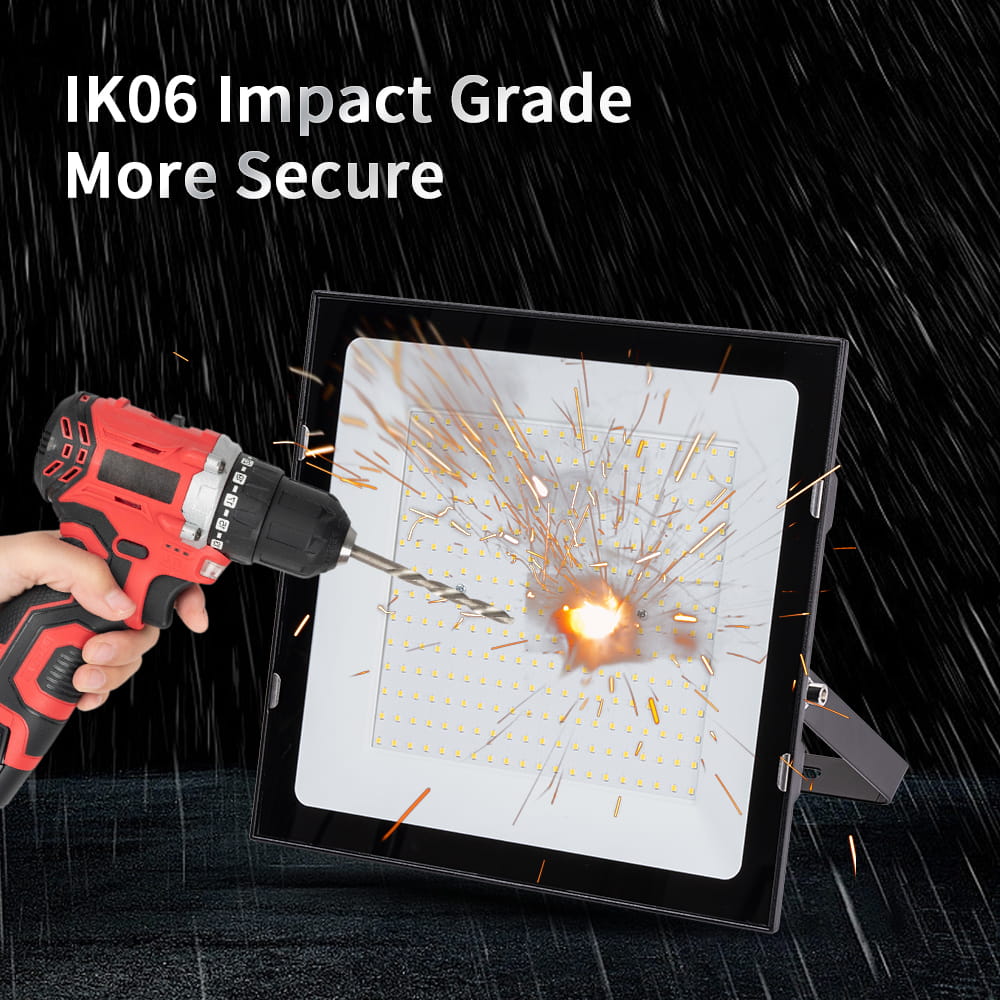

  • 4mm thickness fully tempered glass, IK06, more secure than 3mm semi-tempered from other manufacturers.

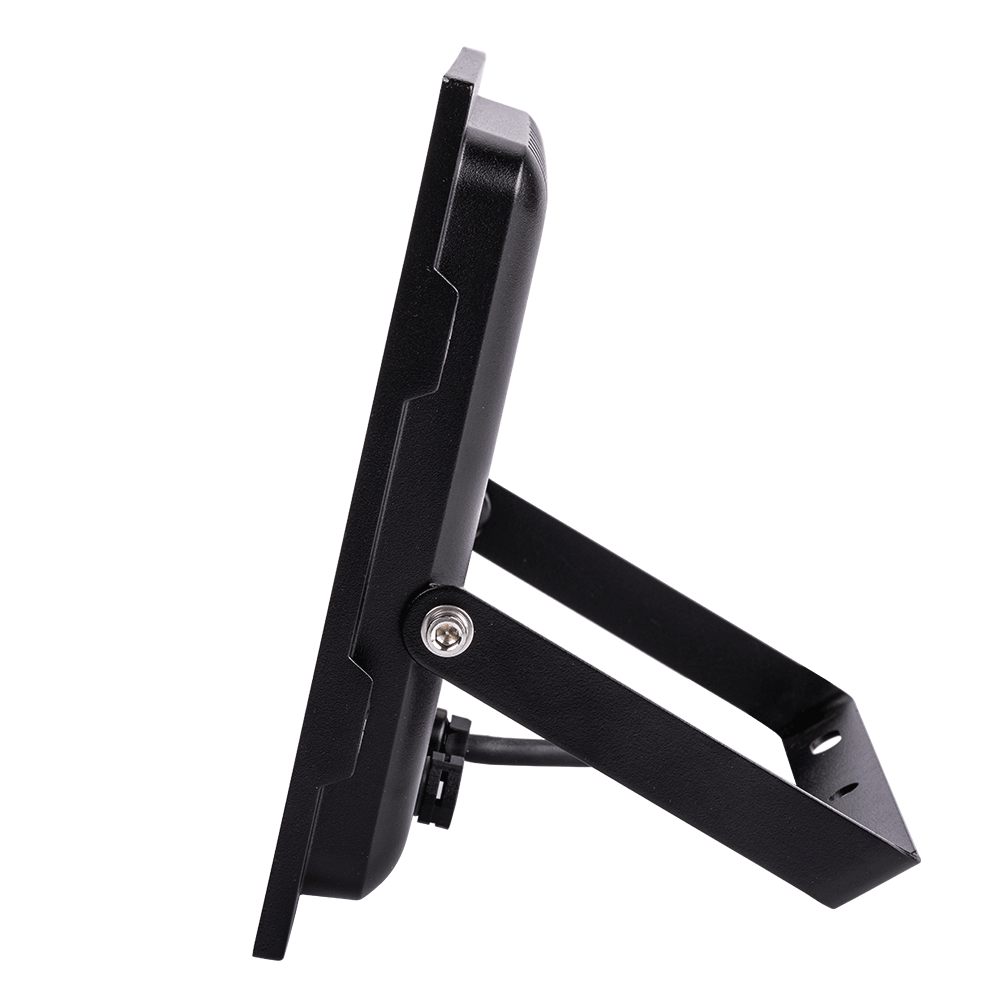

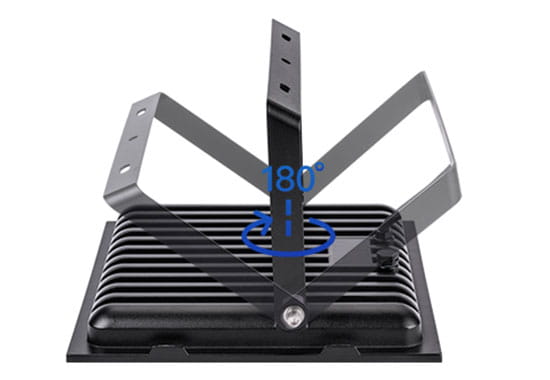

  • 180° rotatable bracket for easy installation and beam adjustment.

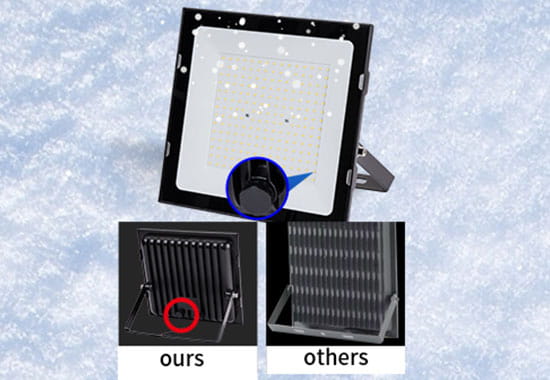

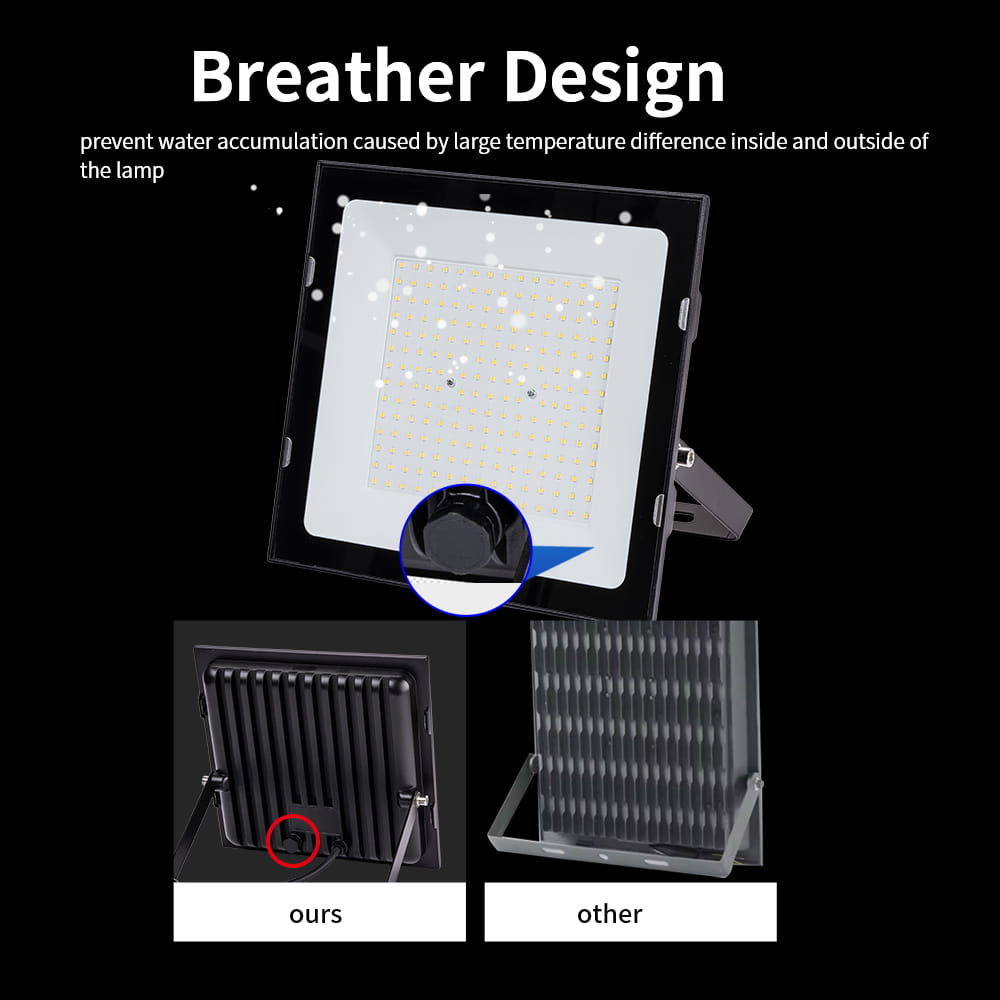

  • Breather design can prevent water accumulation caused by large temperature differences inside and outside of the lamp.

  • 100% aging test for each order.

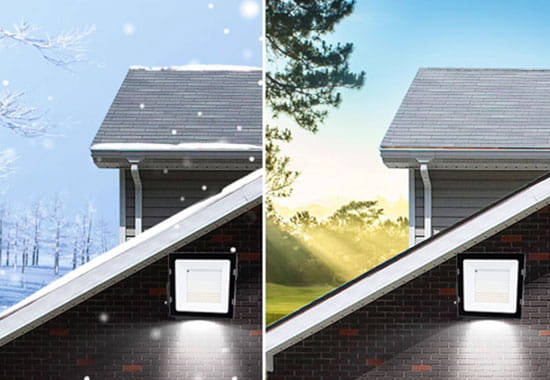

  • No matter it is -40℃ or +65℃, our LED flood lights always work well.

Certificate

We supply flood light, solar light, and street lamp with patent design and reliable quality. The factory was founded in 2007 with over 10,000 square meters. Our team is consisted of over 200 staffs. The annual output exceeds 2 million pcs. Deeply involved in the lighting field for many years, we well understand the market demand and have superior R&D and innovation ability, and we can design customized products according to partner’s requirements.

  • 2007

    Founded in

  • 10,000+

    Company area

  • 200+

    Staff

  • 2,000,000+

    Annual output

Frequently Asked Questions

  • How Can I Get a Quote For The Lights?

    Get in touch with our customer service team to get a quote. They are available 24/7. Just be ready with your specifications like size, color temperature, wattages, etc. Give us your BOQ, and we’ll guide you through the rest of the process.

  • What is Your MOQ For The Order?

    Our MOQ is 500pcs for each item.

  • Can I Get a Sample Before Place The Order?

    Yes, we will provide you with a sample that you can physically evaluate. This will take 3 to 7 business days to complete. Custom orders may take longer.

  • What Is The Delivery Time of My Order?

    Our usual delivery time for LED flood lights is 25 to 35 days. The shipping period isn’t included, so consider that when setting your deadline expectations.

  • Can You Make Customized LED Flood Lights?

    Yes, we can customize LED Flood Lights for you. We need you to give us specific details like your design preference, power input, beam angles, wattage, etc. If you need further direction, our customer service can help you throughout the process.

  • What Is Your Warranty For Your LED Flood Lights?

    Quality is vital in everything that we do. This is why we are confident enough to provide our LED Flood Lights with a 3- or 5-year warranty. You can ensure that we only use high-quality materials and that every product is 100% tested before delivering to your specified location.
